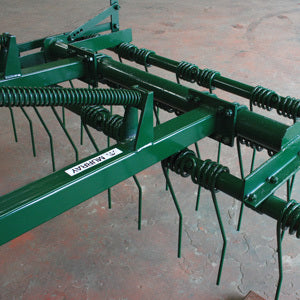

If you require Heavy Duty Spring Tines, Murray’s Series 37 will complete any job with ease. Complementing scarifies and chisel plows, it will break down cloddy ground and aid final seedbed preparation. To work out what machine width would be best to

Using larger 465mm (18’3/4”) by 12mm Diameter tines with a 75mm (3”) spacing, the Series 37 is put together using a heavier tine section frame. Available in a 3 Rank model, it is supplied with two mounting arms for each section. Two sizes are available – 1.83m (6’) and 2.28m (7’6”).

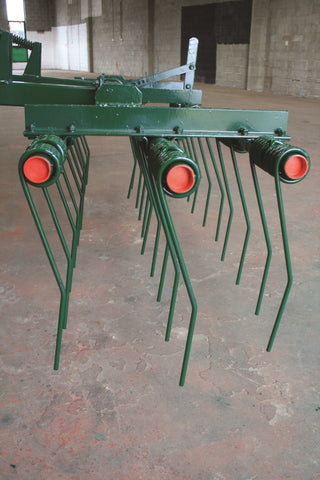

Experience the difference with our kinked tine designed to exert aggression in breaking down cloddy ground and final seedbed preparation.

Specifications

  • Tine Spacing 75mm (3”) 3 Rank
  • Tine Diameter 12mm Kinked Tine
  • Tine Length 465mm (18 ¼”) approx
  • Rank Spacing 305mm (12”)
  • 2 Mount Arms per unit
